| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | CE，SGS |
| Model Number: | R3B12 |
| Minimum Order Quantity: | 500 square meters |
| Price: | USD 8.99 sqm |
| Packaging Details: | Customized Box |
| Delivery Time: | 12-18 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200000 sqm per month |
| Feature: | Permanent Conduction | Thickness: | 2.0mm,2.5mm |
|---|---|---|---|
| Electrical Resistance: | EC 2.5X 10^4~10^6，SD 1.0*10^6~10^9 | Material: | PVC |
| Function: | Anti Static /Conductive Or Dissipative | Size: | 2mx20m |
| Application: | Electronic Plant,Medical Plant | Wear Group: | T |
| High Light: | R3B12 20m non static flooring,R3B12 2m non static flooring,R3B12 Clean Room esd floors |
||

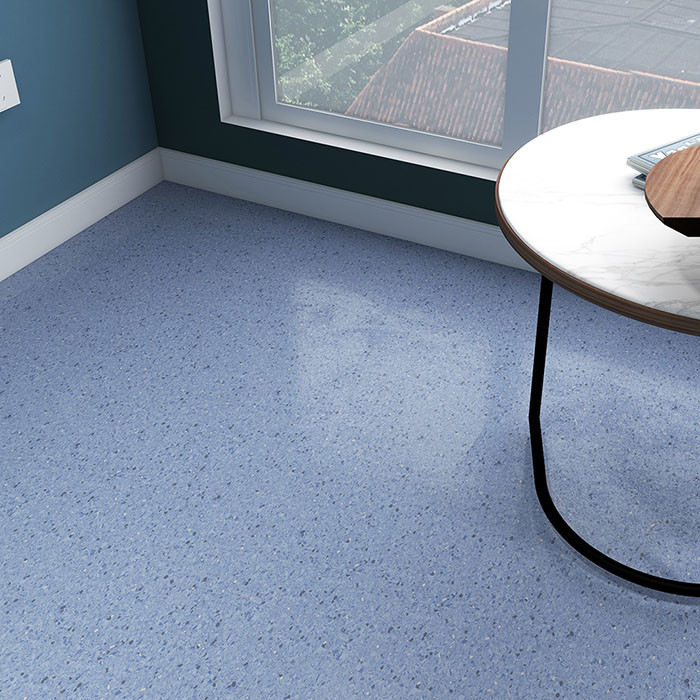

Conductive Flooring in Roll Permanent antistatic floor Professional area
Permanent antistatic floor uses the PVC resin as the main component, and utilizes the plastic particle interfaces to form the permanent
antistatic network. make the floor looks like the marble,have a good decorative effect. Widely used in telecommunication electronics ,computer
room,,clean room...etc
ESD roll come as an economical solution because of their long-term life and therefore they are good in high-traffic and industrial areas such
as hospitals, schools, libraries, supermarkets, warehouses and so on.
PVC Flooring is widely use in indoor homes, hospitals, schools, office buildings, factories, public places, supermarkets, malls,stadiums and
other different places.
PVC Flooring is one of the most popular new type light floor decoration materials in the world, also called "light floor material".It was
popular in Europe, America and some country in Asia like Japan and South Korea but now it pave all over the world.
| Technical Data | ||
| DISCRIPTION | UNIT | |
| Type of flooring | Homogeneous PVC flooring | |
| Thickness | mm | 2.0~3.0 |
| Weight | g/m2 | 3200 |
| Width | mm | 2 |
| Length | mm | 15~20 |
| Fire resistance | B1 | |
| Electrical resistance | kv | ≤2 |
| Slip resistance dry | ≥0.3 | |
| Slip resistance wet | R9 | |
| PERFORMANCES | ||
| Abrasion group | P | |
| Abrasion resistance | mm | ≤0.10 |
| Castor wheel test | Suitable | |
| Residual indentation | mm | ≤0.04 |
| Color fastness | ≥6 | |
| Thermal resistance | m2k/w | ≈0.01 |
| Dimensional stability | % | ≤0.10 |
| Chemical products resistance | Very good | |
| Toxic testing | Suitable | |
| Tolerance for width and length | mm | ±0.15 |
| Residual indentation | mm | ≤0.15mm |
| Dimensional change on heating | % | ≤0.20 |
| abrasion wear | g/cm2 | ≤0.020 |
| Voltage | |V|<100V | |
| Decay time | <2S | |
| Electric properties | conductive | <1.0×106Ω |
| dissipative | 1.0×106Ω~1.0×109Ω |
Projects
Because Refine Union floor is impermeable, the surface dirty is easy to clean.
Avoid sharp scratches on the floor by hard object ,and maintain a smooth surface.
Clearing the floor by neutral detergent ,dry after washing,then coated with anti-static wax.
