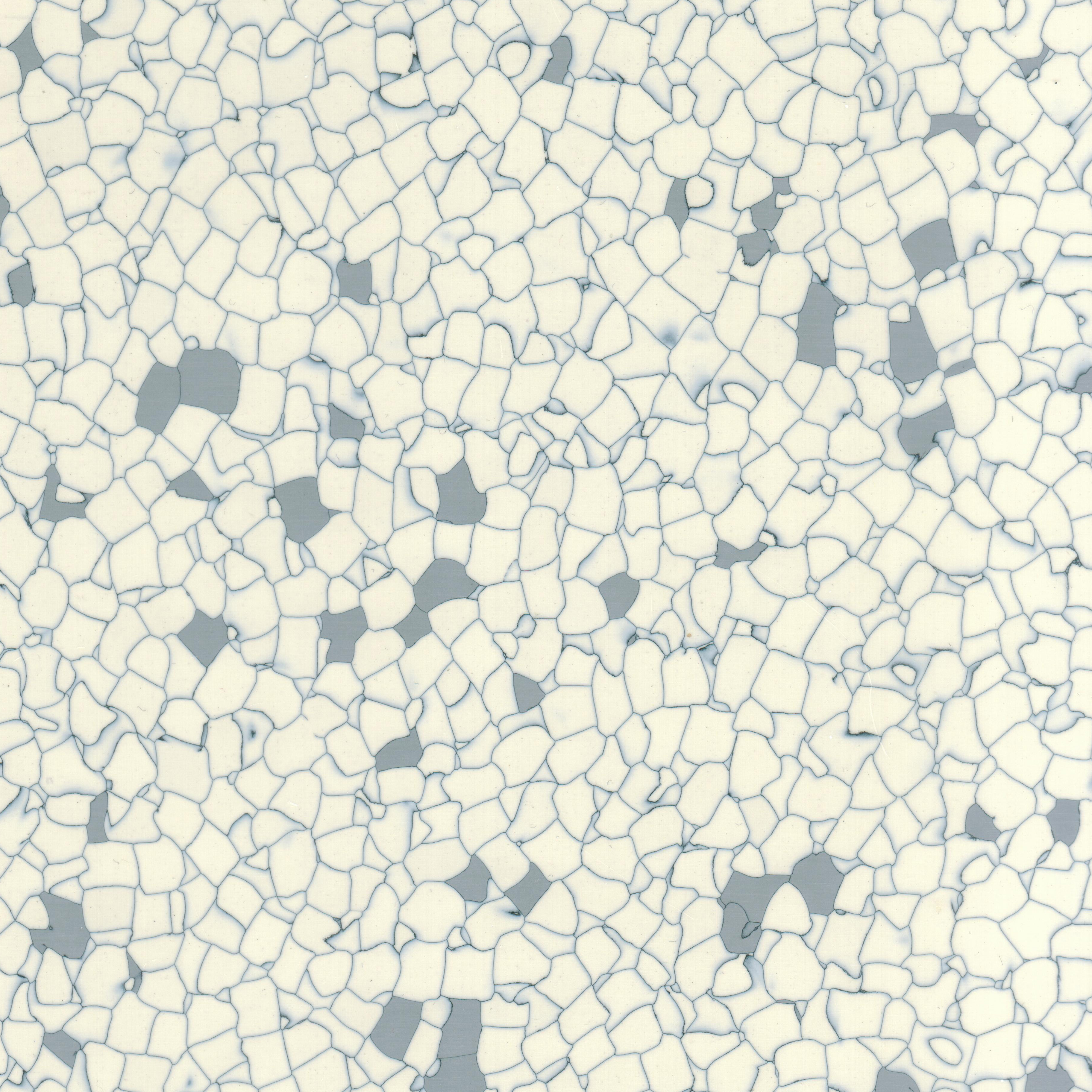

Fire-proof and chemical resistance properties PVC Conductive Tiles
-1. Size: 600x600x2.0mm,600x600x3.0mm, 600x600x3.0mm, available;
-2. Surface resistance: Conductive 10e4-10e6, Dissipative 10e6-10e9 ohm;
-3. Excellent wear resistance and easy cleaning with the special coating;
-4. Conductive material is distributed evenly in entire tile so that it has permanent conductivity;
-5. Fire-proof and chemical resistance properties;
-6. High precision in size, good wearing ability, anti-dust, anti-water;
-7. Good conductivity to electricity;
-8. Durable and long lifetime, easy to install and maintenance;
-9. Good load-bearing performance, able to withstand heavy presure, such as machines, vehicle, machine tools, etc.
-10. Excellent fireproof function, help to prevent spread of fire.
This product has permanent anti-static function because it uses conductive static network formed at the interface of plastic particles.
Clean Room
Refine Union CONDUCTIVE TILE meets requirements in clean rooms as strict as class 10 based on its hightech know-how by over 740 research and manufacturing staff. It has low carbon contamination and low emission and is independent of room temperature and humidity
and is highly suitable for special clean room maintenance techniques; Semiconductor, Mic roelect ronics, Optics, Aerospace, Pharmaceutics, Biotechnology,etc
----------------------------------------------------------------------------------------------------------------------------------
ELECTRONICS MANUFACTURING ASSEMBLY,TEST AREAS
Refine Union ESD-CONTROL TILE is a permanently installed material that helps to protect sensitive electronic devices. assemblies and products from personnel-generated electrostatic discharge.
-------------------------------------------------------------------------------------------------------------------------------------
ACCESS FLOORING
Refine Union ESD-CONTROL TILE is suitable for use on access flooring. It can easily be perforated without risk of rough edges or the tile cracking or breaking. Major manufacturers of raised access floors are experienced in the use of Refine Union ESD CONTROL TILE
-------------------------------------------------------------------------------------------------------------------------------------
COMPUTER AND ELECTRONIC EQUIPMENT
AND TELECOMMUNICATIONS ENVIRONMENTS
Refine Union ESD-CONTROL TILE controls static discharges into computer terminals or other sensitive electronic equipment, thus preventing damage to internal circuitry, incorrect entries or retrieval, loss of computer memory or other malfunction. It protects large data processing facilities, computerized typesetting and drafting equipment, process control equipment, communications installations , and other static sensitive equipment and instrument.
------------------------------------------------------------------------------------------------------------------------------------------
HEALTH CARE
Refine Union ESD-CONTROL TILE helps to control involuntary personnel movement caused by electrostatic discharge, prevent hazardous static discharge directly into patients and prevent fire or explosion where flammable anesthetics are used.
